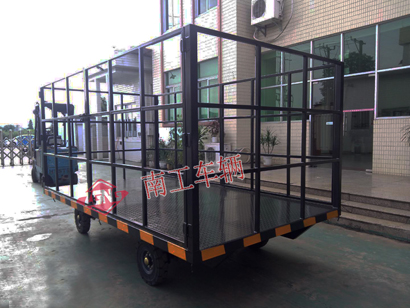

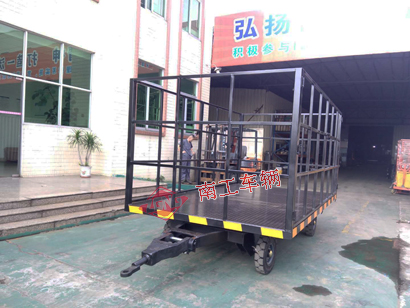

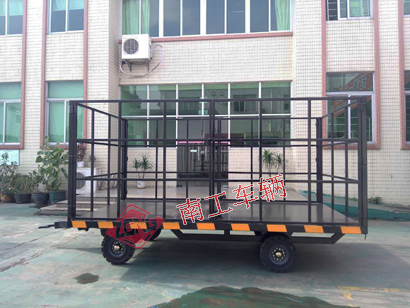

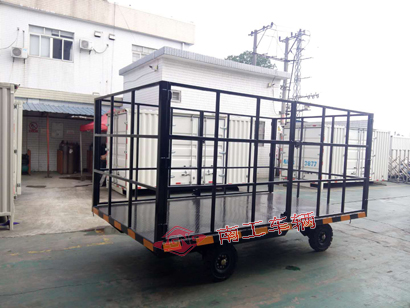

3-ton high guardrail unpowered fully trailer flatbed trailer

Brand: Nangong, Model: NGTT03F-20/36-4S, Material: Section Steel, Specification: 3.6 * 2 meters, Net Weight: 1500KG, Color: Black,

3-ton high guardrail unpowered fully trailer flatbed trailer detailed parameters:

1. The flatbed truck has a carrying capacity of 3 tons, a platform width of 2 meters, a length of 3.6 meters, and a height of approximately 0.6 meters;

2. The main beam of the platform is welded with steel sections, and the surface is covered with 4mm patterned plates;

3. The tires are four solid tires of model 500-8, with a single wheel load of 1.2T and a speed of 15KM/H;

4. The height of the guardrail is 1.5 meters, with fixed front and rear and split left and right sides;

5. The front wheels have a left and right rotation angle of 180 degrees, which facilitates small radius turning;

6. The steering mechanism is a rotary table type machine rotary assembly (3T);

7. Provide a set of connectors and pins;

8. Weld 3 couplers on each side;

9. Color: Black, with yellow warning stripes sprayed around.

The 3-ton high guardrail unpowered fully trailer flatbed truck from Nangong is produced year-round and sold directly by the manufacturer at an affordable price with guaranteed quality. Nangong flatbed trucks have a long service life and heavy load capacity, and can be customized according to customer requirements. Application scenarios: Used for short distance transportation in workshops, warehouses, docks, airports, stations, and logistics centers.
