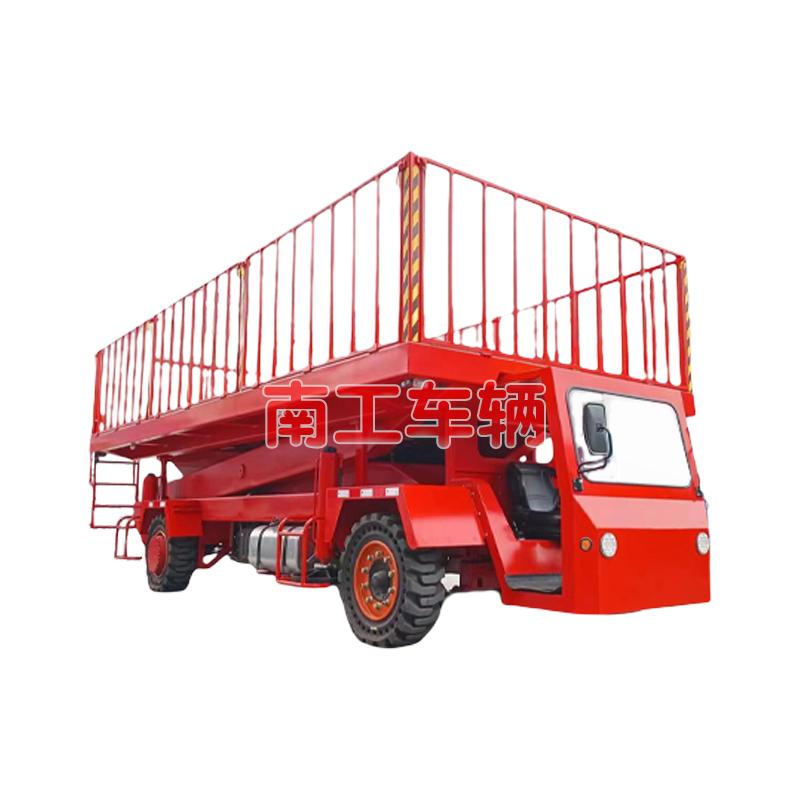

1. Lifting bearing: 30 tons, the main frame is welded with Q345 steel, the platform size is 7.3 * 3 meters (overall size 7.7 * 3 meters), and the whole machine is about 14 tons.

National No. 5 engine: ISD160 50; The power configuration is engine plus hydraulic system; The lifting hydraulic system is equipped with electro-hydraulic valve and hydraulic system; The action hydraulic system is an electrohydraulic valve and hydraulic drive assembly; The steering hydraulic system is an electrohydraulic valve plus a two-way hydraulic cylinder; The hydraulic system pressure is 14-23 adjustable.

2. The whole vehicle is mainly divided into chassis, car body, console cab, power system, electric control system, shear support and upper platform.

3. The basic functions of the main components are: hydraulic driving walking function, horizontal adjustment function of the support foot main body, parallel lifting function of the shear fork, etc.

4. There are two types of controls: passenger car control and remote control. Except that the normal running, steering, braking, lighting and other functions need to be completed in the cab, the rest, such as the level adjustment of the car itself and the lifting of the platform, can be operated on the external handle.

5. The platform lifting is designed with steep power failure protection function. When the vehicle body has an inclination greater than 2 degrees, the system will give an alarm and actively cut off the lifting function. The lowering function will remain normal and available, and the function will return to normal after the level is adjusted.

6. Color: fire red.
