Brand: Nangong, Model: NG (TT) LPA015-10/14, Size 1.4 * 1 meter, Load capacity: 1.5 tons, Net weight: 3 tons, Color: Blue,

1. The load-bearing capacity of the electric track lifting platform is 1.5 tons. The main frame of the platform is welded with steel sections, and the surface is covered with 4mm patterned plates; The board width is 1 meter, the length is 1.4 meters, and there are organ covers around it;

2. The knife holder is about 6.4 meters long, 1.718 meters wide, and 1.328 meters high;

3. Drag chain power supply, with cables attached to the bottom of the vehicle. The drag chain provides power (AC 380V) during track travel, using a three-phase AC motor (0.2KW * 2);

4. The inner space of the double track is 750mm (P24, running in a straight line for 5.3 meters), with a speed of 15 meters per minute, controlled by remote control;

5. Equipped with alarm lights, which light up and sound when walking, and powered by the control box and power unit box;

6. Install guide wheels on both sides of the guide rail to prevent rollover;

7. Vehicles need to be placed in the center when storing goods, and the knife holder needs to be lowered before the vehicle can move;

8. Color: Blue.

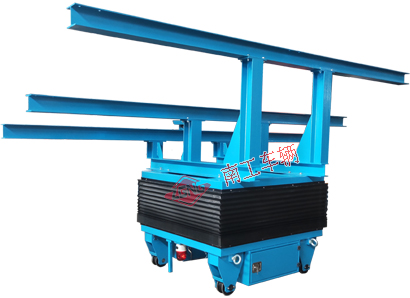

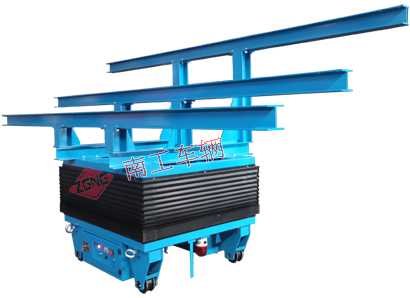

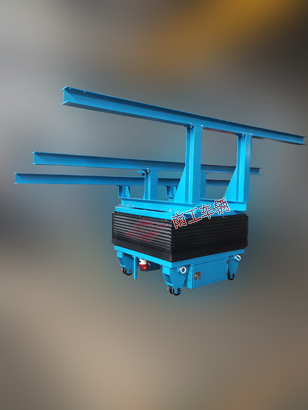

The electric rail trailer lifting platform is a specially designed product that integrates the electric rail car and the lifting platform. It is designed for the customer's on-site use environment and is practical, durable, and safe.

Application scenario: This trailer is suitable for high distance transportation and loading and unloading between factories, professionally designed and customized.
