Brand: Nangong, Model: NGTT035VM-17/23-2H, Load Capacity: 0.35 tons, Inner Dimensions: 2.35*1.75 meters, Net Weight: 860KG, Color: Army Green;

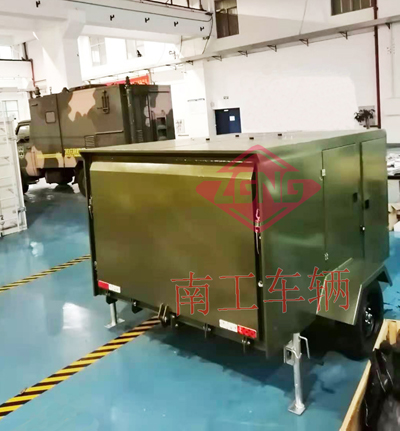

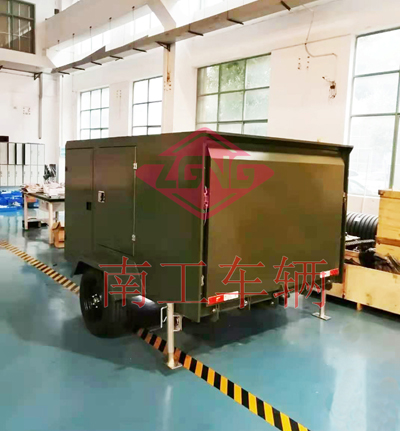

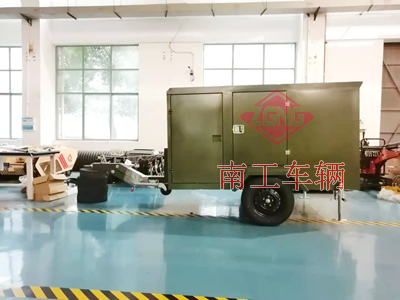

Detailed parameters of 0.35-ton ATV box-type tool trailer:

1. The entire vehicle has a load capacity of 0.35 tons. The internal dimensions of the box body are 2.35 meters in length, 1.75 meters in width, and a total height of 1.85 meters. The frame is welded using steel sections, and the surface of the frame is covered with 3mm checkered plates;

2. The chassis is equipped with 3 pneumatic tires of 195/70R15 (including 1 spare tire), with a single load capacity of 0.9 tons and a speed of 60KM/H;

3. This vehicle is equipped with a torsion bar suspension for shock absorption, with taillights installed at the rear of the cabin (no power supply required), interior lighting installed inside the cabin, and both the power unit and lighting circuits utilizing 220V power supply. Additionally, three wall-mounted three-pin 220V power sockets will be added inside the cabin (specific locations to be communicated later);

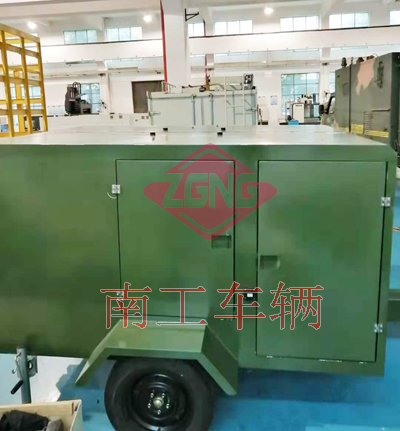

4. The carriage is processed using 1.5mm steel sheet metal, with partitions at the front and rear. Each side of the carriage is designed with three single-door openings, equipped with door limit hooks inside. The front cavity of the carriage head is also partitioned, and the diesel engine is placed in a separate cavity. The interior of the carriage is reserved with wiring channels and mounting holes (see the specifics in the drawings);

5. The rear of the carriage is equipped with a hydraulic flip door: when opened and flipped down, it can be used as a boarding bridge; when closed, it can be used as a carriage door. The hydraulic flip door is equipped with a remote control, enabling local and remote operation. (In case of failure, it can be manually flipped.);

6. Four manually operated lifting legs are installed on the exterior of the vehicle's body for parking support, which can be retracted by rotating them upwards when driving;

7. The height of the traction frame can be adjusted by adjusting the brake traction ring, and one side of the traction rod is equipped with a set of universal wheel legs. When driving, it can be rotated and raised to be stored;

8. The top of the trailer can bear a load of 60kg, and a steel plate with dimensions of 800×800×4 is attached and fixed to the top via bolts;

9. Overall vehicle color: army green (Warrior vehicle);

10. The specific requirements shall be subject to the plan confirmed by both parties.

The robot is equipped with a 0.35-ton ATV box-type tool trailer, which is customized for non-standard vehicles. It features convenient operation, safe use, competitive pricing, and fast delivery.

Application: The van trailer is a modification of the flatbed trailer chassis by adding an upper loading box. It is commonly used in power stations, cooking, showering, material transportation, and other places. This trailer chassis features both service inertia braking and parking braking, with torque reduction. This model of trailer is used for robot transportation.
