Brand: Nangong, Model: NGTT03-18/30-4H, Material: Section Steel, Load Capacity: 3 tons, Net Weight: 1500KG, Color: Engineering Yellow;

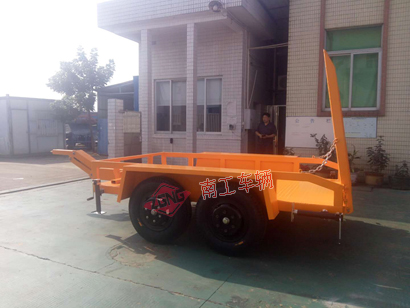

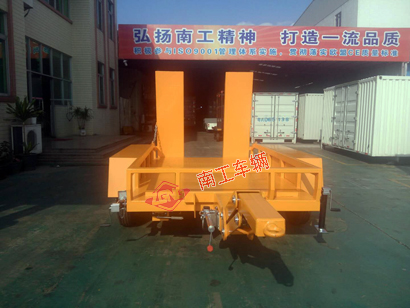

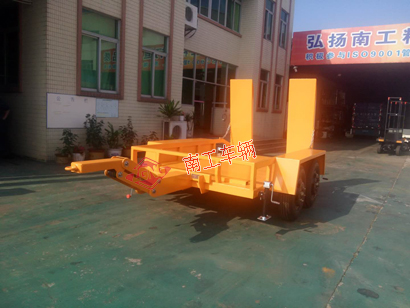

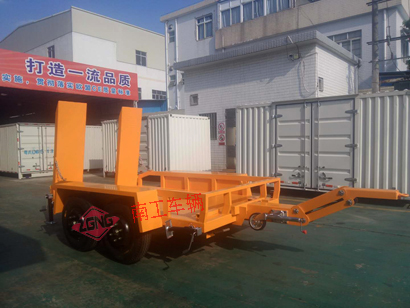

3-ton ATV flatbed trailer small car trailer detailed parameters:

1. The vehicle has a load capacity of 3T, and the main beam of the platform is welded from 6 # steel. The platform is 1.8 meters wide (excluding tire width) and 3 meters long (excluding slope length). The platform is about 0.46 meters above the ground and covered with 4mm patterned boards;

2. The rear of the car is equipped with two patterned steel plate ladders (length according to design dimensions), which come with safety chains;

3. This vehicle adopts 4 700-16LT inflatable tires, with a single wheel load capacity of 1.32T and a rated speed of 60-100KM/H. The tires are placed on both sides of the vehicle and equipped with mudguard plates;

4. The design concept of this vehicle is suspended, which can adjust the vehicle's level and tire load balance according to the road surface smoothness;

5. The left and right rotation angle of the front wheels is 180 degrees, which facilitates small radius turning;

6. This vehicle is equipped with parking brake (handbrake);

7. Each side of the vehicle is equipped with a mechanical support leg;

8. The steering mechanism is a turntable type rotary assembly (3T);

9. The traction rod of this vehicle is adjustable (chicken head type), and each vehicle is equipped with one dedicated connector and one pin;

10. Color: Engineering yellow, with black warning stripes sprayed around.

The 3-ton ATV flatbed trailer, small car trailer, and Nangong have been producing in large quantities for many years. The ATV trailer has the characteristics of heavy load capacity, low cost, exquisite appearance, and long service life. It is sold directly by the manufacturer and exported to both domestic and foreign markets!

Application: Used in light industries such as small appliances, furniture, printing, and electrical logistics. This vehicle is used for loading and unloading small cars.
