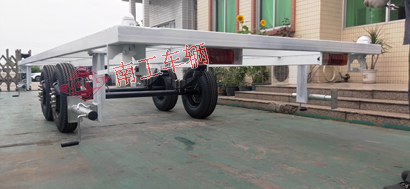

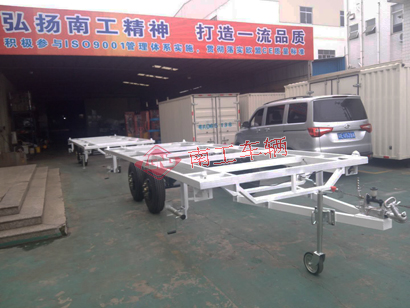

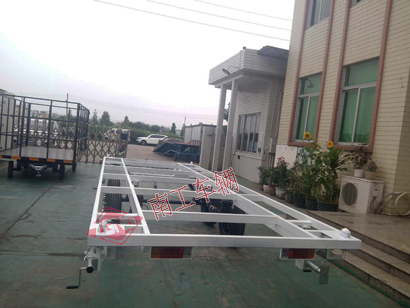

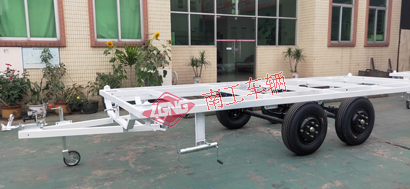

4-ton RV chassis fully trailer flatbed trailer

Brand: Nangong, Model: NGTT04-22/59-4H, Material: Model, Board Size: 2.2 * 5.9 meters, Color: White, Net Weight: 1200kg, Color: White,

Detailed parameters of a 4-ton RV chassis fully trailer flatbed trailer: (specific details shall be subject to the confirmed plan diagram by both parties)

1. The load-bearing capacity of this vehicle is 4T. The main beam of the platform is made of 8 # steel, and the auxiliary beam is made of 8 # steel. This vehicle is a skeleton type without patterned plates. The frame width is 2.2 meters, the length is 5.9 meters, and the height is about 0.88 meters;

2. There are four 700R16LT inflatable tires at the bottom of the vehicle frame, with a single wheel load capacity of 1.32T and a speed of 60-100KM/H;

3. This car is equipped with a service brake (collision brake);

4. Install folding support legs around each side of this vehicle (to be fastened while the vehicle is in motion);

5. Install a universal wheel support leg at the towing frame of this vehicle (it should be attached when the vehicle is in motion);

6. Install a container specific corner lock around each side of this vehicle;

7. This car is equipped with three color taillights;

8. Color: White.

4-ton RV chassis fully trailer flatbed trailer Nangong vehicle is custom-made all year round. Nangong fully trailer has the characteristics of heavy weight, light weight, and low cost. It is directly sold by the manufacturer with quality assurance!

Application scenario: Suitable for container bodies, mobile RVs, mobile newsstands, mobile stores, and other non powered towing vehicles. This vehicle is specifically designed for transporting mobile wooden houses.
