Brand: Nangong, Model: NGTT05-08/19, Load Capacity: 5 tons, Board Size: 0.8 * 1.9 meters, Color: Blue, Net Weight: 1.3T

Detailed parameters of electric remote control mold transfer trailer:

1. The electric rotating vehicle has a carrying capacity of 5 tons, with a platform surface covered with 4MM patterned plates and surrounded by 6MM edge plates. The total width is 0.8 meters, the length is 1.9 meters, and the overall height is about 0.53 meters. A set of rotating mechanisms and 4 sets of lifting cylinders are installed above the vehicle body, which can lift the stroke from 0 to 100mm;

2. This car is equipped with 2 sets of 2.2KW motor driven wheels, each carrying 1.5 tons. The 90 degree limit mechanism of the drive wheels has a steering angle of 180 degrees, which can achieve straight or horizontal movement as well as turning in place. The driving speed is 0-4KM/H. The power uses 24V200A lead-acid batteries with large capacity and long service life. It is charged with a 24V30A dedicated charger;

3. The distribution control box and hydraulic power box at the bottom of the vehicle are equipped with (Anshan Fumeijia) 24V2KW hydraulic power unit, and the controller is imported from (Curtis, USA) with stable performance and long service life. The operation adopts (Yuding, Taiwan) wireless remote control, and the controller and button operation functions are simple and flexible;

4. In order to avoid the malfunction of electric lifting and walking components that may affect normal use, this vehicle is designed with a backup plan, which includes fast charging connection plugs at both the front and rear ends, six sets of wheel lifting devices, and a set of manual hydraulic pumps. When the walking motor and hydraulic power unit fail or the battery runs out, manual operation can be carried out through the backup plan to ensure that the vehicle can be used normally;

5. Install directional tail wheel components at the bottom to ensure straight walking in the automatic edge cutting machine channel;

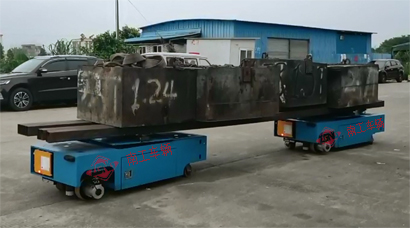

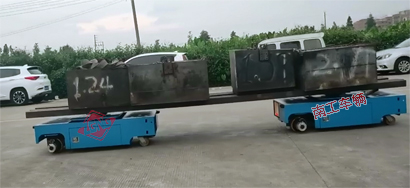

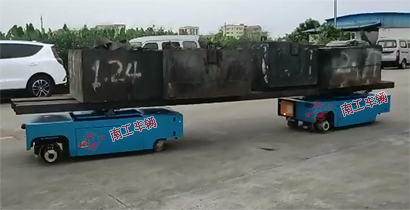

6. The two car remote controllers can achieve both individual actions and linkage;

7. Color: Blue.

Electric remote control mold transfer tool trailer Nangong vehicle professional customization, electric rail car mounted heavy, low cost, safe and durable, manufacturer direct sales, welcome to call for customization!

Application scenario: Rail cars are suitable for frequent transportation of heavy objects within and between enterprise factories at short distances.
