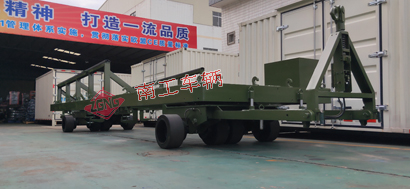

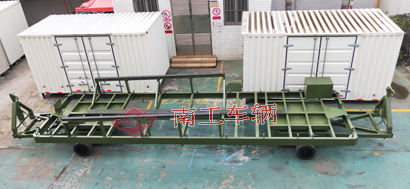

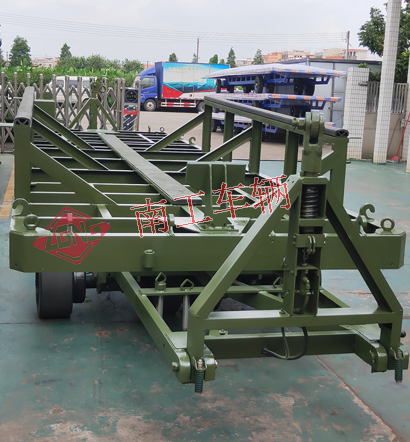

Brand: Nangong, Model: NGTT15SB-23/82-8S, Load Capacity: 15 tons, Net Weight: 2500KG, Board Size: 8.2 * 2.3 meters, Color: Green;

Technical requirements for towing (see technical plan for details):

1. The flatbed truck has a load-bearing capacity of 15T, with the platform main beam made of 20 # I-beam, the side beams made of 20 # channel steel, and the crossbeams made of 12 #/20 # channel steel. The board surface does not need to be paved with patterned plates;

The width is 2.3 meters, the length is 8.2 meters, and the height is 0.772 meters. A lifting baffle is set below the side beam, and tie rings (with nuts) are installed on both sides of the platform. The center of gravity of the vehicle needs to be marked on the frame, and position frames are set at the bow/stern of the ship;

2. Dual traction, this vehicle has 8 models of 18 * 9 * 12 1/8 press fit wheels, with a driving speed of 10-20KM/H and equipped with handbrake/collision brake; Equipped with spring shock absorbers, a rubber plate is laid in the middle of the frame, and an additional spare tire (including a steel ring that can be placed on the car when shipped) is also included. A toolbox is set up on the front side of the car;

3. The design concept of this vehicle is suspended, which can adjust the vehicle's level and tire load balance according to the smoothness of the road surface;

4. The left and right rotation angle of the front wheels is 180 degrees, which facilitates small radius turning;

5. The steering mechanism is a rotary table type machine rotary assembly (15T) (Ø 1055 * 74mm);

6. Weld 6 reinforced couplers (for binding ships) on each side, and connect the couplers with the towing head;

7. All screws are made of 316 # stainless steel material, and the connecting pin shaft needs to be electroplated and painted;

8. The whole vehicle is hot-dip galvanized and the color is military green.

Heavy duty maritime patrol boat trailer, non powered dual towing fully trailer, 15 tons, professionally designed and manufactured by Nangong, factory direct sales, quality assurance, affordable price!

Application: Used for short distance transportation and turnover on land such as yachts, kayaks, ships, patrol boats, etc.
