Brand: Zhongde Heavy Industry, Model: ZD20-160-23N, Load Capacity: 2 tons, Inner width * height of door frame: 2.3 * 1.8 meters, Structure: Built-in (hidden), Material: Steel profile, Net Weight: 740KG, Color: Black;

2-ton built-in car tailboards, custom-made by Nangong for many years, are hydraulic lifting and handling devices powered by on-board batteries, installed inside trucks and various vehicle compartments. They are also known as concealed car tailboards or built-in truck tailboards. They function similarly to external car tailboards, but differ in that they are installed inside the vehicle compartment, providing peace of mind and addressing safety concerns associated with long periods of high-speed driving.

Characteristics of 2-ton built-in car tailboard:

1. Fast: By simply operating the buttons to control the lifting and lowering of the tailboard, the transfer of goods between the ground and the carriage can be easily achieved.

2. Safety: The use of tailboards facilitates easy loading and unloading of goods without requiring manual labor, enhancing the safety of operators and reducing the damage rate of items during loading and unloading, especially for flammable, explosive, and fragile items, which are more suitable for tailboard loading and unloading.

3. Efficiency: Using tailboards for loading and unloading, no other equipment is required, and there are no restrictions on space or personnel. One person can complete the loading and unloading. This can effectively save resources, improve work efficiency, and fully utilize the economic efficiency of vehicles.

4. Lightweight: After the improvement of the built-in tailboard, it becomes lightweight, thereby increasing the cargo capacity of the truck,

5. Quick installation: Quick and simple installation, improving work efficiency,

6. Time-saving and labor-saving: The annual inspection eliminates the need for disassembly and assembly, reducing manpower and material resources, and saving time

2-ton built-in car tailgate structure:

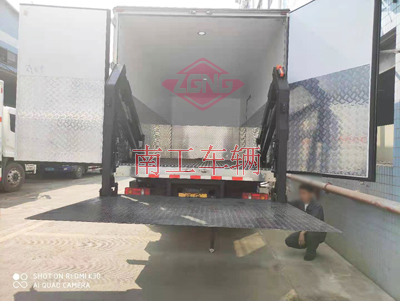

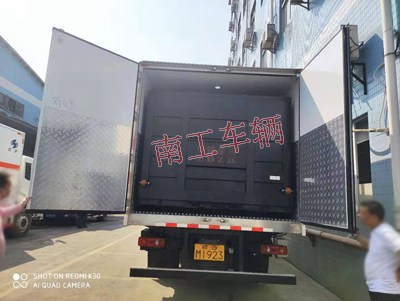

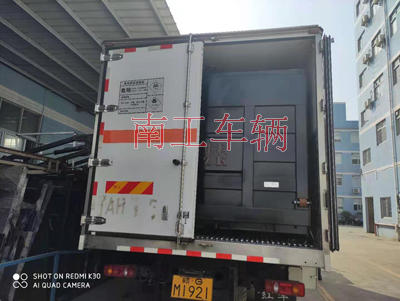

Most of them are installed and fixed to the car's trunk with a suspended bracket equipped with four hydraulic cylinders through a lifting plate. Operated by an electronic control and pump station system, after opening the trunk door, the tailgate panel is controlled to move from a vertical position - to swing back until the panel is horizontal - to descend to the ground - to tilt down until the front end of the panel is flush with the ground, allowing for the loading and unloading of goods from the truck. The entire process can be operated by one person, ensuring safety and convenience. The characteristic of this type of product is that it is hidden inside the trunk, facilitating vehicle annual inspection.
