Brand: Nangong Vehicle, Model: NGTT04FM-22/53-4S, Load Capacity: 4 tons, Panel Size: 5.37 * 2.26 meters, Net Weight: 1250KG, Color: Black;

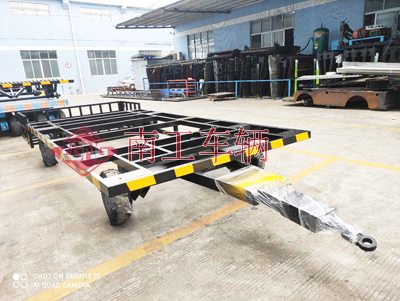

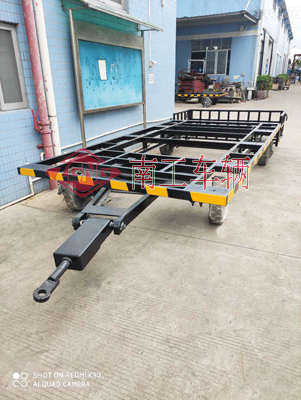

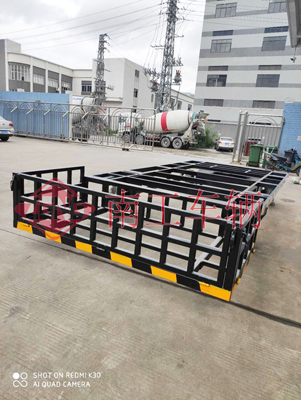

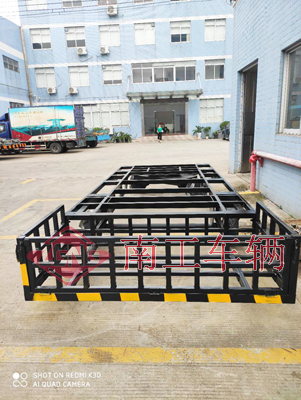

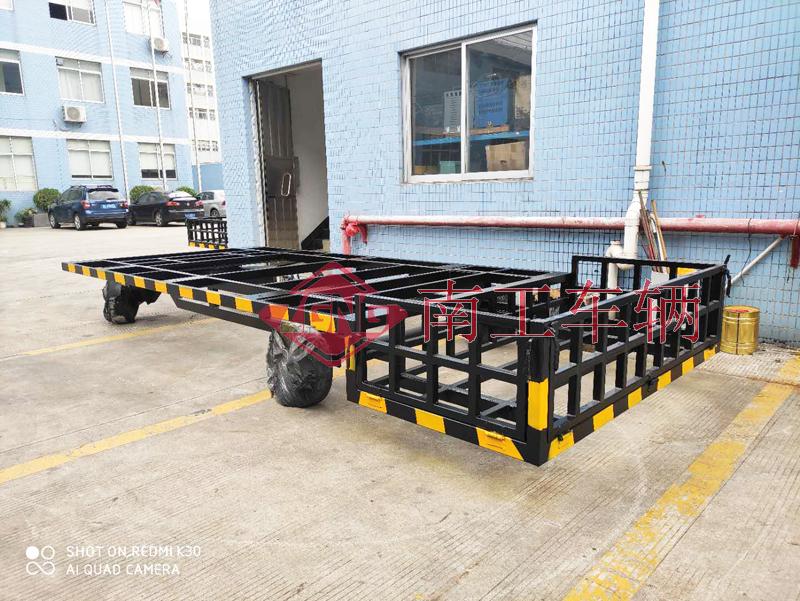

Detailed parameters of a 4-ton fully trailer flatbed trailer:

1. The carrying capacity of the flatbed truck is 4 tons. The platform is welded with steel (8 #), with a width of 2.26 meters, a length of 5.37 meters, and a height of about 0.66 meters (the size of the load-bearing items is 4200 × 2260 × 1500mm). The rear of the platform is covered with aluminum patterned plates, with a skeleton structure. The rear of the truck is a sunken frame with movable plates (which can be flipped on both sides and the rear side, welded according to the diagram);

2. This car has four solid wheels (without brakes) of model 600-9, with a speed of 15km/h, a single wheel load capacity of 1.9T, and a rigid suspension;

3. Rotary table type rotating frame, front wheels can rotate 180 degrees, buffer type traction frame (fixed vertically when not in use);

4. The color is matte black, with yellow warning stripes sprayed around.

5. Connect the B-shaped pin with anti decoupling feature (self-locking).

6. Equipped with four threaded mechanical feet.

7. The screw holes on the platform are located according to customer requirements.

8. Color: Matte black, with yellow stripes sprayed around.

The 4-ton fully trailer flatbed truck is manufactured by Nangong. The characteristics of Nangong flatbed truck include heavy load capacity, good quality, long service life, and excellent price.

Application scenarios: Used for round-trip transportation between airports, ports, train stations, factories, and large warehouses.
