Brand: Nangong, Model: NGPT120-30/80-24S, Tire Model: 22 * 14-16, Load Capacity: 120 tons, Net Weight: 22 tons, Color: Engineering Yellow;

Detailed parameters of 120 ton King unpowered flatbed trailer:

1. This vehicle is designed as an adjustable flatbed truck, with a total load-bearing capacity of 120 tons. The board is 3 meters wide, 8 meters long, and 0.95 meters high. The lifting stroke of the board is 200MM. The main frame is made of 25 # steel, the main beam is made of 40 # high manganese alloy steel, and the board is made of 8MM steel plate;

2. This vehicle has a total of 24 wheels, with 8 in the front and 16 in the back. The wheel model is 22 * 14-16 solid press fit tires, with a single wheel bearing capacity of 6.3 tons;

3. The design concept is multi axis independent rigid suspension, which can adjust the vehicle level and tire load balance according to the road surface smoothness;

4. The buffer type towing frame effectively alleviates the impact force between the towing vehicle and the flatbed truck during starting or braking, effectively avoiding component damage, as well as collisions and injuries to the transported goods;

5. This vehicle is equipped with a 120 ton steering mechanism, and the front wheels have a left and right rotation angle of 180 degrees. Large rotation angles facilitate small radius steering, and the operation is simple and convenient;

6. The lifting power adopts electric hydraulic oil, the battery adopts 24V200A, which can lift continuously for 30 times, the motor adopts 24V3KW commonly used DC motor, the hydraulic pump is equipped with Italian T0, and the solenoid valve is equipped with Taiwan Oil Research Institute;

7. The lifting mechanism is made of 40 manganese alloy steel with quenching and tempering processing, which has good fatigue strength. The oil cylinder seals are all imported NOK brand, with a long service life and low oil leakage;

8. Color: Engineering yellow, with reflective strips around;

9. Complete on time and ship to the address provided by the customer;

10. Attached documents: Product certificate, operation manual, maintenance manual and other related materials.

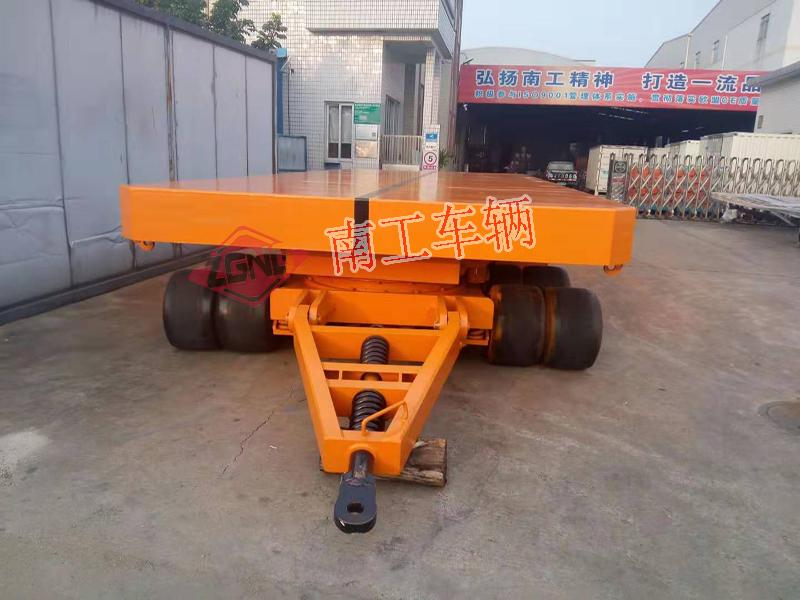

The 120 ton king unpowered flatbed trailer with lifting function is professionally customized by Nangong Vehicles, with good quality and excellent price. The trailer is sold both domestically and internationally!

Application: Used for the transit transportation of heavy products such as metallurgy, molds, and machinery. Generally, press fit solid tires are used. This heavy-duty trailer is used for short distance transportation and turnover of large oil tanks.
