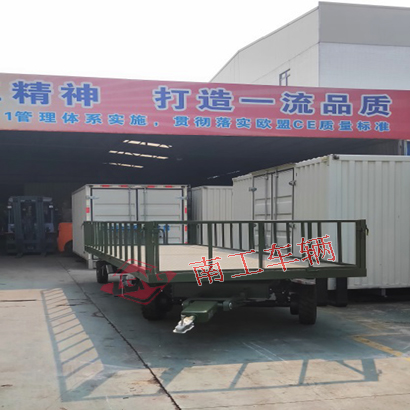

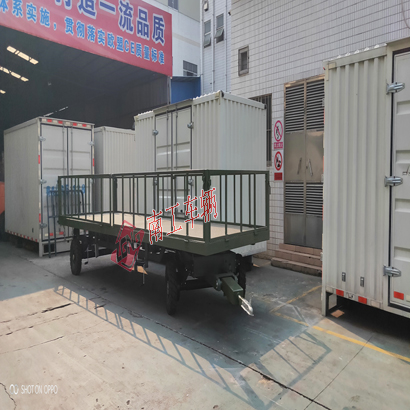

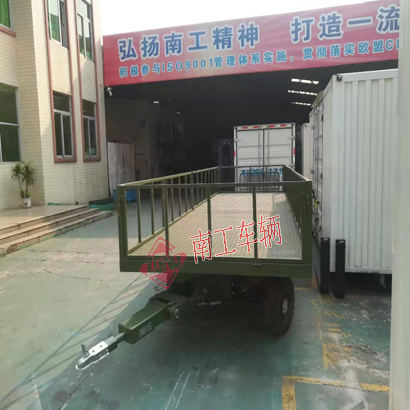

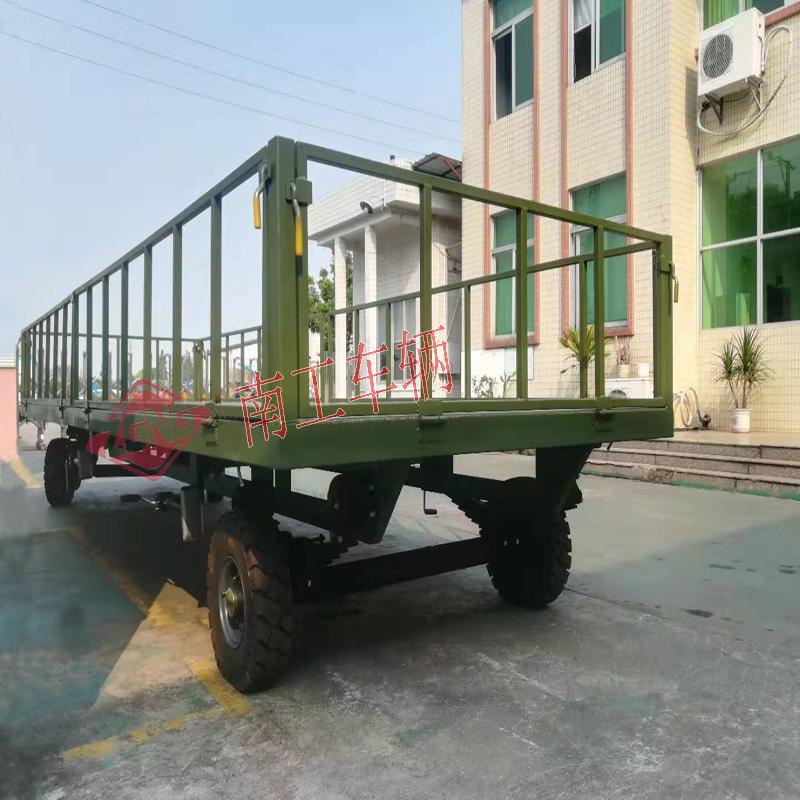

Brand: Nangong, Model: NGTT05FSBM-20/65-4H, Load Capacity: 5 tons, Board Size: 6.5 * 2 meters, Net Weight: 2240KG, Color: Military Green;

5-ton guardrail flatbed trailer detailed technical parameters:

1. The bearing capacity is 5 tons, the platform is welded with steel sections, and the surface is covered with 4MM patterned boards. The width of the tabletop is 2 meters, the length is 6.5 meters, and the height is about 0.79 meters (effective cargo area: 6.38 * 1.88 meters);

2. This car has a total of 4 models of 600-9 air tires, with a front center wheel with handbrake, a single wheel load capacity of 1.5T, and a rated speed of 15KM/H;

3. This car is equipped with leaf spring shock absorbers and manual pull-out hand cranked feet on both sides (detachable);

4. The left and right rotation angle of the front wheels is 140 degrees, with a buffer type traction mechanism;

5. The steering mechanism is a (5T) rotary table type machine rotary assembly;

6. There are flip type guardrails around, with a height of 0.6 meters and fixed square tubes at the four corners;

7. Each vehicle is equipped with 4 rope tighteners during shipment to secure the vehicle inside the container;

8. Weld 5 couplers on each side;

9. Color: military green;

5-ton guardrail flatbed trailer, commonly known as full trailer chassis trailer, is widely customized by Nangong vehicles for short distance transportation. It has a large load capacity, is sturdy and durable, and has a long safe service life.

Application scenario: The flatbed truck is used for heavy-duty transportation of industrial goods or transportation of personnel. The characteristics of the flatbed full trailer are low board height and large loading capacity. Solid tires are safe, simple, and durable, with no risk of tire breakage or blowouts.
