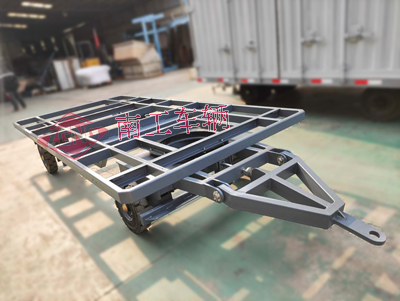

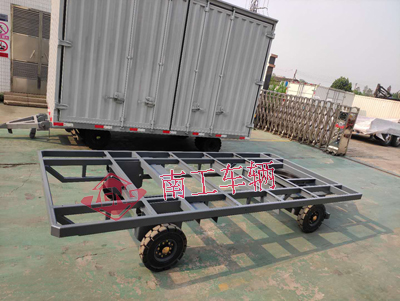

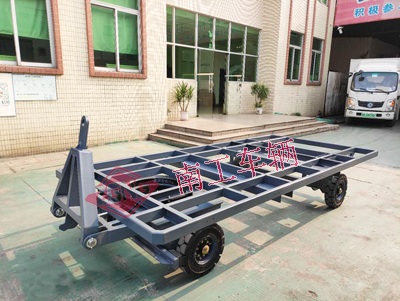

Brand: Nangong, model: NGTTFSB03-18/38-4S, load capacity: 3 tons, table size: 3.8 * 1.8 meters, tire model: 500-8, net weight: 916KG, color: gray;
Detailed parameters of a 3-ton skeleton flat trailer with upturning brakes:
1. This vehicle has a load-bearing capacity of 3 tons, and the platform is welded with profile steel. The skeleton structure does not have patterned plates. The length of the vehicle plate surface is 3.8 meters, the width is 1.8 meters, and the height is about 0.63 meters. The frame needs to be tapped (constructed according to the diagram).
2. This car has 4 solid wheels of models 500-8, with spring shock absorbers, front wheels with flip up brakes, a single wheel load of 1.2T, and a rated speed of 15km/h.
3. The traction frame is welded with square tubes (100 * 50 * 4mm).
4. The steering mechanism is a rotary table type machine rotating assembly (3T).
5. The left and right rotation angle of the front wheels is 180 degrees.
6. The tail is equipped with a continuous traction mechanism.
7. Equipped with one connector and one connector pin.
8. Color: Grey (without warning stripes)
A 3-ton skeleton flat trailer with upturning brakes in gray, manufactured by Nangong Vehicles, with customizable specifications and load capacity, significant load capacity, low cost, and safe use.
Application: Skeleton flat trailer is used for loading and transportation of containers, mobile sentries, mobile malls, RVs, etc.
