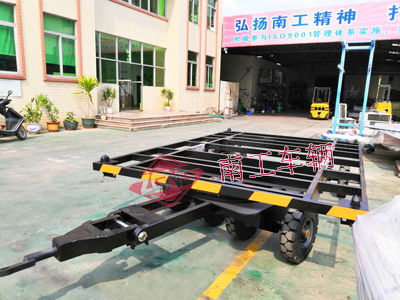

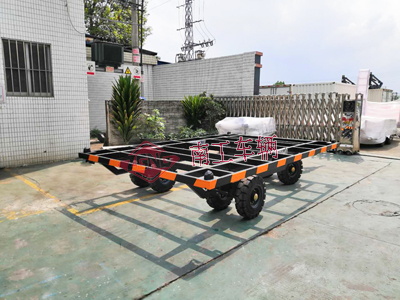

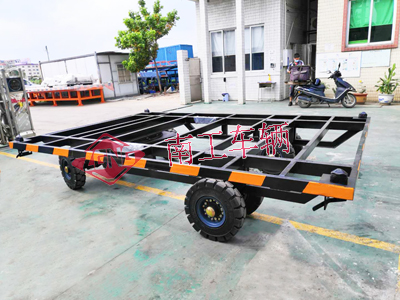

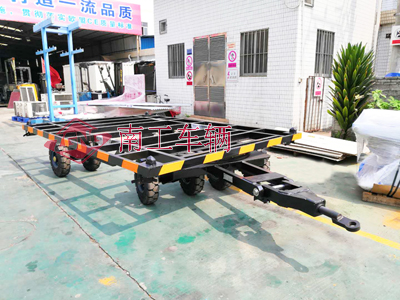

Brand: Nangong, model: NGTT08-24/36-4S, load capacity: 8 tons, table size: 2.438 * 3.6 meters, tires: 600-9 solid tires, color: matte black; Net weight: 1170KG

Detailed parameters of an 8-ton skeleton flat trailer:

1. The rated load capacity is 8 tons, and the internal dimensions of the cargo platform are 3600 * 2438mm. The main structure is an 8 gauge steel structure, and the main beam is a 10 gauge steel structure. The frame plus type does not require planking;

2. The tires are 8 600-9 solid tires, with 4 front and 4 rear tires, and a single wheel bearing capacity of 1.2 tons;

3. The rotary mechanism is an 8-ton standard type that can rotate 180 degrees and is equipped with an 8-ton buffered traction frame. The traction mechanism can be adjusted and fixed up and down, and different vehicle models only need simple adjustment for traction;

4. The vehicle body is equipped with four manual lifting legs, and the four corners are equipped with four square cabin locks;

5. Color: matte black;

8 ton flatbed truck is professionally customized by Nangong Vehicle, with medium flatbed trailer equipped with 8 solid tires, heavy load, maintenance free, practical and safe, and long service life!

Application: Conventional flatbed trucks are used in industries such as ceramics, hardware, and chemical engineering. They generally use solid tires or solid compression tires with strong load-bearing capacity and small tire diameters.
